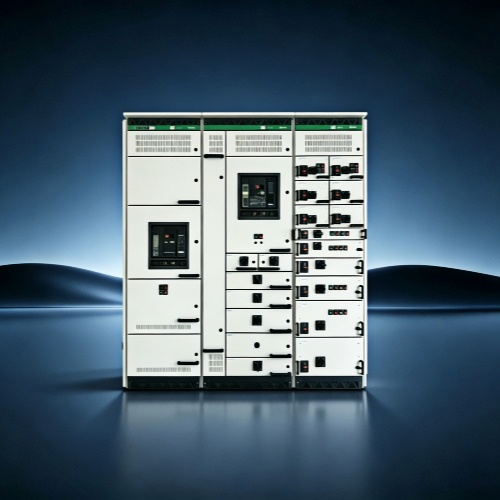

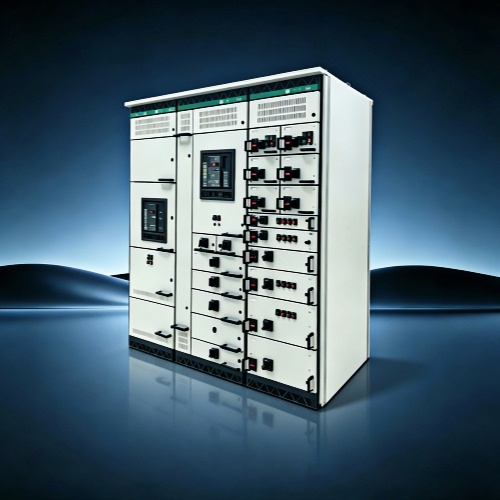

MNS Type AC Low-Voltage Withdrawable Switchgear | Modular Industrial Electrical Control & Power Distribution Cabinet

Product Details Introduction

I. Industry Pain Points & Solutions

Traditional low-voltage power distribution systems face persistent challenges: fixed cabinet structures limit flexible expansion; non-withdrawable components require full system shutdown for maintenance, causing costly production downtime; poor compartmentalization increases safety risks from cross-circuit interference; and bulky designs waste valuable floor space in modern industrial facilities.

Our MNS cabinet directly addresses these pain points. The modular, withdrawable structure of the MNS switchgear allows quick replacement of functional units without powering down the entire system, minimizing operational downtime. Independent functional compartments isolate circuits, eliminating safety hazards and improving system reliability. The compact, space-saving design of the MNS distribution cabinet reduces footprint by up to 30% compared to conventional fixed cabinets, making it ideal for space-constrained industrial environments.

II. Product Details & Core Advantages

Cabinet Material & Craftsmanship

The MNS cabinet is fabricated from high-strength galvanized steel plates, processed through precision laser cutting, robotic welding, and electrostatic powder coating. This process delivers exceptional mechanical strength, corrosion resistance, and anti-aging performance, with an IP40 ingress protection rating that shields internal components from dust and accidental contact. The modular frame structure of the MNS switchgear enables quick assembly and disassembly, while its sleek, professional appearance aligns with modern industrial power room aesthetics. Ventilation grilles at the top and bottom enhance heat dissipation, ensuring stable performance during continuous operation.

Core Configuration (Inverter Brand & Components)

At the core of the MNS distribution cabinet is a premium component ecosystem: we partner with leading brands such as Schneider Electric, Siemens, and ABB for variable frequency drives (VFDs), circuit breakers, and contactors, ensuring reliable power control and protection. High-quality copper busbars, terminal blocks, and relays from certified suppliers guarantee stable current distribution and long-term compatibility. The withdrawable functional units of the MNS cabinet (including circuit breaker drawers, motor control drawers, and capacitor compensation drawers) are pre-tested in-house, allowing for hot-swappable replacement and reducing on-site maintenance time.

Core Function Details

The MNS switchgear integrates multiple essential functions:

• Power Distribution & Protection: Efficiently distributes low-voltage power while providing overcurrent, short-circuit, and leakage protection, safeguarding critical industrial equipment.
• Withdrawable Unit Design: Functional drawers can be quickly withdrawn and replaced without system shutdown, minimizing maintenance downtime.
• Modular Compartmentalization: Independent busbar, functional unit, and cable compartments isolate circuits, preventing cross-interference and enhancing safety.
• Intelligent Monitoring: Optional HMI and remote communication modules enable real-time data collection, status tracking, and remote operation, supporting smart factory and industrial automation.
• Safety Interlocks: Mechanical and electrical interlocks prevent misoperation, ensuring operator safety during MNS cabinet installation and maintenance.

Differentiation Advantages

What sets the MNS distribution cabinet apart from competitors:

• Hot-Swappable Maintenance: Withdrawable functional units allow component replacement without power outage, reducing downtime by up to 80%.
• High Modularity: Flexible combination of functional drawers (power, control, compensation) to meet diverse project requirements.
• Space Efficiency: Compact design reduces footprint by 30%, optimizing valuable industrial floor space.
• Enhanced Safety: Independent compartmentalization and interlock mechanisms minimize safety risks from electrical faults and misoperation.
• Global Compliance: Fully compliant with IEC 60439 and GB 7251 standards, with CE certification for global market access.

 III. Technical Parameter Table

IV. Applicable Scenarios

The MNS cabinet is widely used across key industries:

• Industrial Manufacturing: Provides reliable power distribution and control for factories, assembly lines, and production equipment.
• Data Centers & Telecom Facilities: Ensures uninterrupted power supply and hot-swappable maintenance for critical IT infrastructure.
• Commercial Buildings: Delivers stable power to shopping malls, office buildings, and hotels with flexible expansion capabilities.
• Infrastructure Projects: Supports power supply for water treatment plants, pumping stations, and transportation hubs.
• Renewable Energy: Integrates with solar and wind power systems for low-voltage power distribution and grid stability.

V. Customization Services

We offer tailored customization for the MNS switchgear:

• Configuration Customization: Adjust functional drawer types, circuit layouts, and protection settings to match specific power needs.
• Dimension & Layout: Modify cabinet size and internal compartment design to fit limited installation spaces.
• Interface & Communication: Customize communication protocols (Modbus, Profibus, IEC 61850) to integrate with SCADA and smart factory systems.
• OEM/ODM Services: Provide private labeling, custom branding, and packaging for global distributors and partners.

VI. Strength Endorsement

Backed by 15+ years of expertise in electrical control cabinet manufacturing, our MNS distribution cabinet has been deployed in over 600 projects worldwide
