Variable Frequency Drive PLC Control Cabinet | Integrated VFD & PLC Electrical Control Cabinet for Industrial Automation

Product Details Introduction

I. Industry Pain Points & Solutions

In modern industrial production, enterprises face persistent challenges: traditional motor control systems lack energy-saving capabilities, leading to high power consumption and operational costs; inconsistent motor speed control reduces production efficiency and product quality; complex wiring between separate control devices increases installation time and safety hazards; poor component compatibility causes system instability and unplanned downtime; limited monitoring capabilities make it difficult to diagnose faults and optimize processes; and non-modular layouts hinder maintenance and system expansion.

Our variable frequency drive PLC control cabinet directly addresses these pain points. As an integrated solution, the VFD control cabinet combines high-performance variable frequency drives with a PLC control system, enabling precise motor speed regulation and intelligent automation. The PLC VFD control cabinet reduces energy consumption by up to 30% compared to traditional control methods, while improving production stability and product consistency. The pre-wired modular design of the integrated VFD PLC cabinet simplifies installation and maintenance, and the built-in HMI interface enables real-time monitoring and parameter adjustment, significantly enhancing operational efficiency.

II. Product Details & Core Advantages

Cabinet Material & Craftsmanship

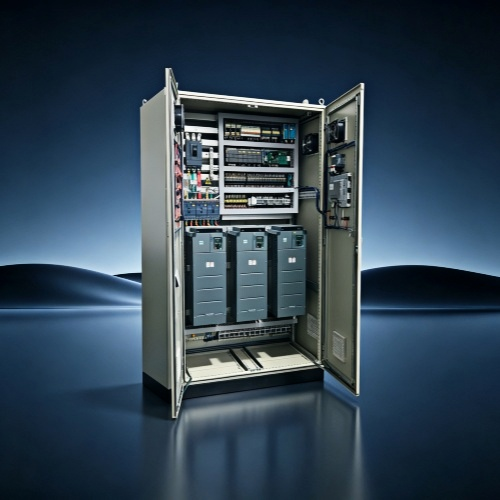

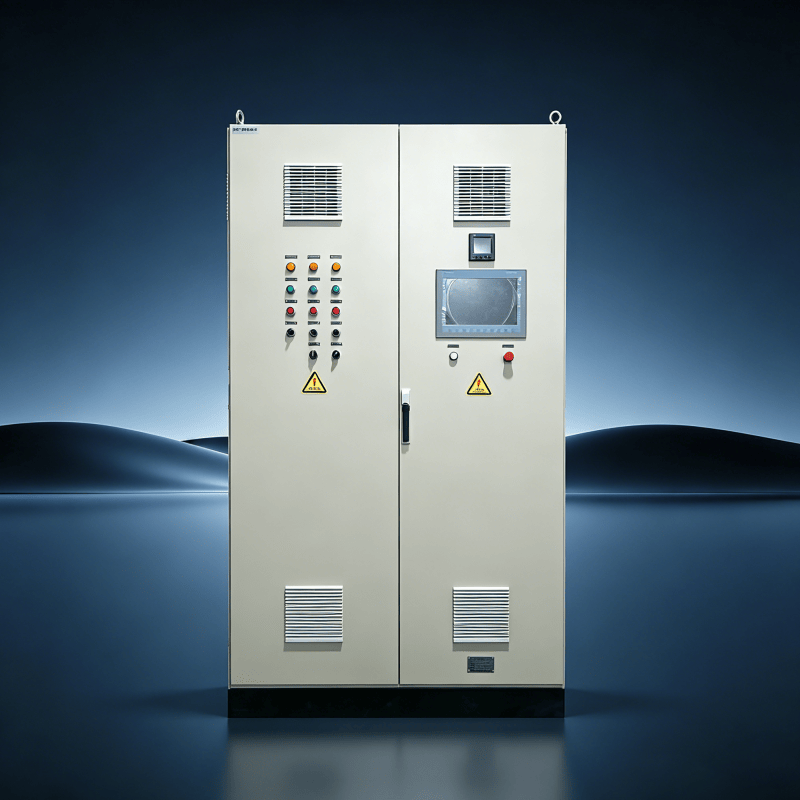

The variable frequency drive PLC control cabinet is fabricated from high-strength cold-rolled steel plates, processed through precision laser cutting, robotic welding, and electrostatic powder coating. This process delivers exceptional mechanical strength, corrosion resistance, and anti-aging performance, with an IP40 ingress protection rating that shields internal components from dust and accidental contact. The VFD control cabinet features a double-door design: one door integrates the HMI touch screen, operation buttons, and indicator lights for intuitive control and monitoring, while the other door provides full access to internal VFDs, PLC modules, and wiring for easy maintenance and troubleshooting. Ventilation grilles and fan cooling systems optimize heat dissipation, ensuring stable performance during continuous full-load operation.

Core Configuration (Inverter Brand & Components)

At the core of the variable frequency drive PLC control cabinet is a premium component ecosystem: we use Siemens series PLC modules (including S7-1200/S7-1500 series) for reliable logic control and data processing, ensuring high performance and compatibility. We partner with Schneider Electric for low-voltage components such as circuit breakers, contactors, and relays, providing robust power protection and control. The cabinet integrates high-performance variable frequency drives from leading brands, supporting wide voltage input and precise speed regulation. The control door is equipped with industrial HMI touch screens, physical buttons, indicator lights, and selector switches, enabling intuitive operation and real-time status monitoring in industrial environments. The PLC VFD control cabinet supports a three-phase five-wire power input (AC380V, 50Hz), meeting global industrial power supply standards. Each integrated VFD PLC cabinet is pre-wired, tested, and debugged in-house, reducing on-site installation time by 50%.

Core Function Details

The variable frequency drive PLC control cabinet integrates multiple essential functions:

• Precise Speed Regulation: High-performance VFDs enable stepless motor speed control, reducing energy consumption and improving production efficiency.
• Intelligent PLC Control: Siemens PLC modules enable precise logic control, data acquisition, and process automation for industrial production lines.
• Intuitive HMI Interaction: Built-in touch screen HMIs provide real-time monitoring, parameter setting, and fault alarm functions, simplifying operation and maintenance.
• Power Distribution & Protection: Schneider low-voltage components provide overcurrent, short-circuit, and leakage protection, ensuring safe and stable power supply.
• Dual-Door Accessibility: The double-door design provides full access to internal wiring and components, simplifying maintenance and reducing downtime.
• Energy-Saving Optimization: VFD technology reduces motor power consumption during partial load operation, cutting energy costs by up to 30%.

Differentiation Advantages

What sets the variable frequency drive PLC control cabinet apart from competitors:

• Integrated VFD & PLC Design: Combines speed regulation and intelligent control in one cabinet, reducing wiring complexity and improving system stability.
• Significant Energy Savings: VFD technology reduces motor power consumption by up to 30%, lowering operational costs for enterprises.
• Premium Component Compatibility: Integration of Siemens PLC modules, Schneider components, and leading-brand VFDs ensures high reliability and long service life.
• Intuitive HMI Operation: Built-in touch screen HMIs enable real-time monitoring and intuitive control, enhancing operational efficiency.
• Pre-Configured & Tested: Factory pre-wiring and testing minimize on-site installation time and errors, accelerating project delivery.
• Global Power Compatibility: Supports three-phase five-wire power input (AC380V, 50Hz), meeting global industrial power supply standards.

III. Technical Parameter Table

IV. Applicable Scenarios

The variable frequency drive PLC control cabinet is widely used across key industries:

• Industrial Manufacturing: Provides automated control and energy-saving solutions for pumps, fans, conveyors, and production lines in automotive, electronics, and food processing industries.
• Water Treatment & Environmental Protection: Controls pump systems and fan speed in water treatment plants and waste management facilities, reducing energy consumption.
• Building Automation: Manages HVAC systems and fan speed control in commercial buildings and smart factories.
• Material Handling & Logistics: Controls conveyor systems and sorting lines, improving efficiency and reducing energy costs.
• Energy & Power: Supports monitoring and control of power distribution systems and renewable energy projects.

V. Customization Services

We offer tailored customization for the VFD control cabinet:

• Configuration Customization: Adjust PLC module types, VFD power ratings, HMI sizes, and component brands to match specific automation requirements.
• Dimension & Layout: Modify cabinet size and internal layout to fit limited installation spaces or special environmental requirements.
• Interface & Communication: Customize communication protocols (Modbus, Profibus, PROFINET) to integrate with SCADA and MES systems.
• OEM/ODM Services: Provide private labeling, custom branding, and packaging for global distributors and partners.

VI. Strength Endorsement & Case Studies

Backed by 15+ years of expertise in electrical control cabinet manufacturing, our variable frequency drive PLC control cabinet has been deployed in over 600 industrial projects worldwide
