Double-Door PLC Control Cabinet with Dual HMI Touch Screens | Intelligent Electrical Control System for Automated Production

Product Details Introduction

I. Industry Pain Points & Solutions

In modern industrial automation, many traditional control cabinets still use single-door structures and single-screen operation, causing great inconvenience in daily management and maintenance. On-site operators often need to switch back and forth between different monitoring interfaces, reducing work efficiency; poor internal accessibility makes wiring and fault checking time-consuming and labor-intensive; unstable component matching leads to frequent system crashes; and cabinets lack dustproof performance, resulting in component damage in harsh workshops.

Our double-door PLC control cabinet provides a complete solution. The dual-door design greatly improves internal accessibility, making installation and maintenance of the PLC control cabinet more efficient. Equipped with dual HMI touch screens, this industrial control cabinet supports simultaneous monitoring of multiple processes or separate operation by different teams, greatly improving on-site coordination efficiency. With IP40 protection, reliable brand components, and standardized wiring, the double-door PLC control cabinet ensures long-term stable operation in various industrial environments.

II. Product Details & Core Advantages

Cabinet Structure & Protection Level

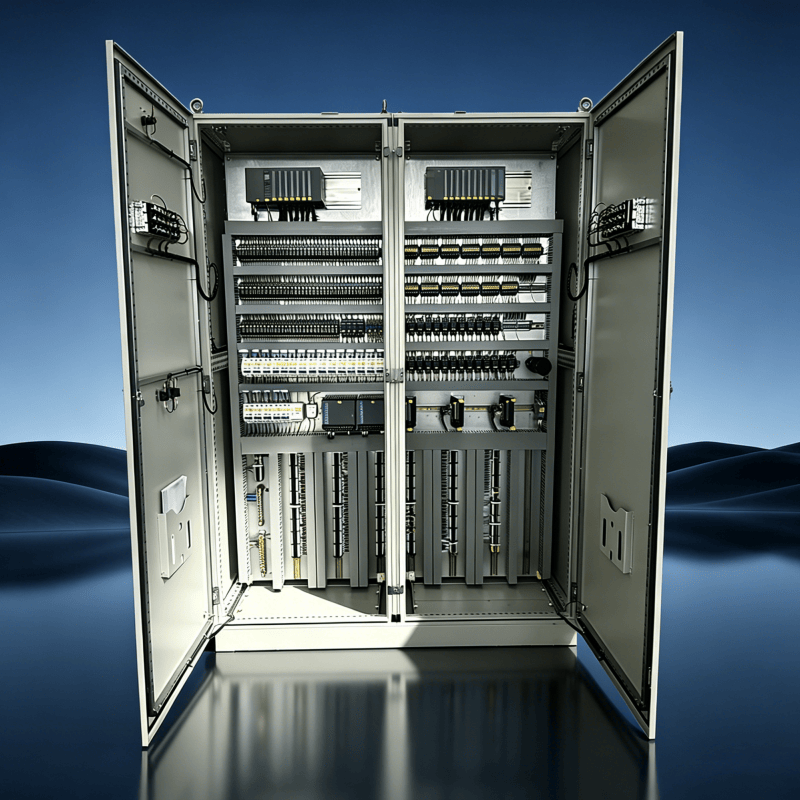

This double-door PLC control cabinet adopts a heavy-duty double-door design, which allows full opening of the front space for easy wiring, debugging, and later maintenance. The entire cabinet is made of high-strength cold-rolled steel with precision manufacturing and electrostatic spraying, which is sturdy, durable, and corrosion-resistant. The protection level of the PLC control cabinet reaches IP40, which can effectively prevent dust intrusion and accidental contact, ensuring safe and stable operation in industrial workshops.

Dual HMI Touch Screens & Operation Interface

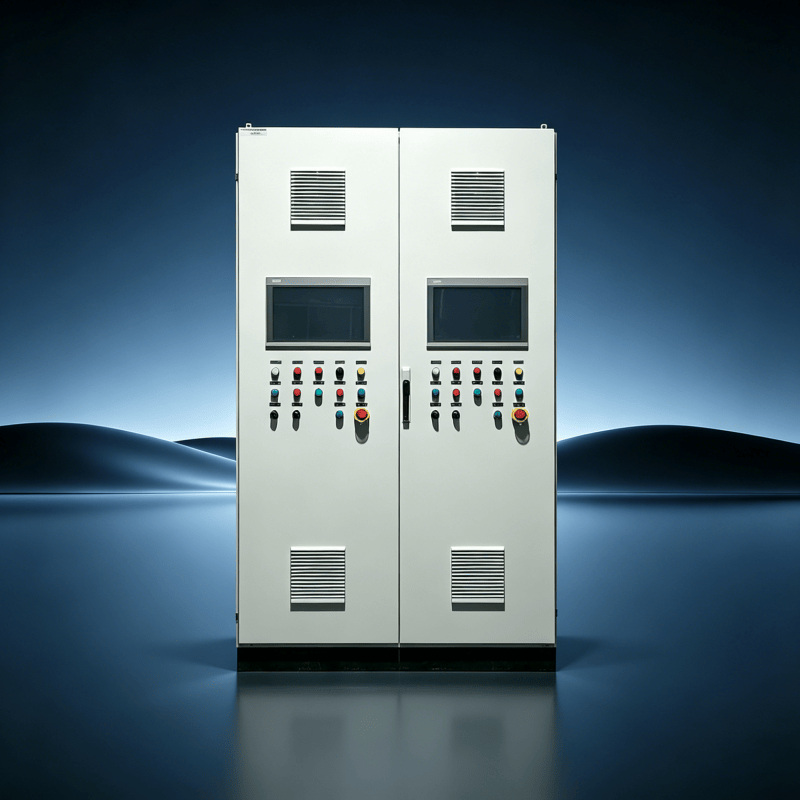

A major highlight of this double-door PLC control cabinet is its dual HMI touch screen configuration. Two human-machine interfaces are installed on the double doors respectively, supporting independent operation, data display, parameter setting, alarm query, and real-time status monitoring. The dual-screen design allows production supervisors and equipment operators to view different interfaces at the same time without interference, improving response speed and management efficiency.

Core Electrical Configuration

The interior of the PLC control cabinet is equipped with high-performance Siemens series PLC modules as the core control unit, ensuring fast response, stable logic, and strong anti-interference ability. Low-voltage electrical components such as circuit breakers, contactors, and relays all use Schneider products, with excellent safety and long service life. The control system uses a three-phase five-wire power supply with a rated voltage of AC380V and a rated frequency of 50Hz, which conforms to international industrial power standards and is widely applicable worldwide.

III. Core Functions

The double-door PLC control cabinet integrates complete automation control functions:

• Dual HMI touch screens realize multi-interface simultaneous display and independent operation.
• Siemens PLC completes automatic logic control, data acquisition, interlock protection, and process scheduling.
• Schneider electrical components provide overcurrent, short circuit, phase loss, and leakage protection.
• Double-door structure improves internal accessibility and simplifies maintenance and troubleshooting.
• Standardized 380V 50Hz three-phase five-wire power input for strong compatibility.
• Reasonable internal layout and heat dissipation design to ensure long-term stable operation.

IV. Application Scenarios

This double-door PLC control cabinet is widely used in automated production lines, automotive manufacturing, food processing, packaging machinery, water treatment systems, pumping station control, logistics conveying systems, intelligent assembly lines, and other industrial automation fields. The dual HMI design makes it especially suitable for complex working conditions that require multi-person collaboration, multi-process monitoring, and regional separate control.

V. Customization & Service

We provide full customization for the PLC control cabinet, including dual HMI size selection, PLC module expansion, I/O point configuration, communication protocol customization, cabinet dimension adjustment, and internal layout optimization. Each double-door PLC control cabinet is fully assembled, wired, tested, and debugged before delivery, supporting on-site commissioning guidance, technical training, and after-sales support. We also provide OEM and ODM services for global distributors and integrators.

VI. Company Strength

With years of professional experience in electrical control cabinet manufacturing, our double-door PLC control cabinet has been widely used in automation projects around the world. Stable quality, reasonable structure, dual HMI humanized design, and reliable brand configuration have won high recognition from customers. We continue to provide safe, efficient, and intelligent electrical control solutions for industrial automation.
