GGD Type AC Low-Voltage Power Distribution Cabinet | Industrial Electrical Control & Power Supply Cabinet with Capacitor Compensation

Product Details Introduction

 I. Industry Pain Points & Solutions

Industrial power distribution systems face persistent challenges: rigid cabinet designs fail to adapt to diverse site layouts; inconsistent component quality leads to frequent breakdowns and production losses; messy wiring and poor compartmentalization increase maintenance difficulty and safety risks; low power factor causes energy waste and higher operational costs; and weak environmental resistance shortens equipment lifespan in harsh conditions.

Our GGD cabinet directly addresses these pain points. The modular, expandable structure of the GGD distribution cabinet allows flexible combination of incoming, outgoing, and compensation functions, fitting perfectly into various industrial and commercial spaces. By integrating premium, globally certified components, the GGD electrical cabinet ensures stable operation and minimizes downtime. Clear compartmentalization and standardized wiring simplify maintenance, while built-in capacitor compensation modules optimize power factor and reduce energy waste. With robust corrosion resistance, the GGD cabinet delivers reliable performance even in dusty, humid, or corrosive industrial environments.

II. Product Details & Core Advantages

Cabinet Material & Craftsmanship

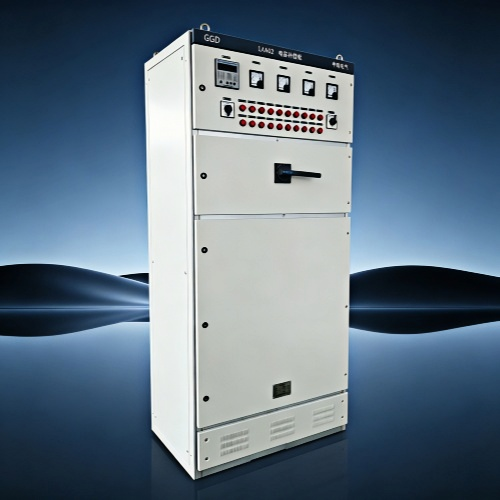

The GGD cabinet is constructed from high-strength cold-rolled steel plates, processed through precision laser cutting, robotic welding, and electrostatic powder coating. This process delivers exceptional mechanical strength, impact resistance, and corrosion protection, with an IP40 ingress protection rating that shields internal components from dust and accidental contact. The reinforced frame of the GGD distribution cabinet ensures stability during transportation and installation, while its sleek, professional appearance aligns with modern power room aesthetics. Ventilation grilles at the bottom enhance heat dissipation, preventing overheating during continuous operation.

Core Configuration (Inverter Brand & Components)

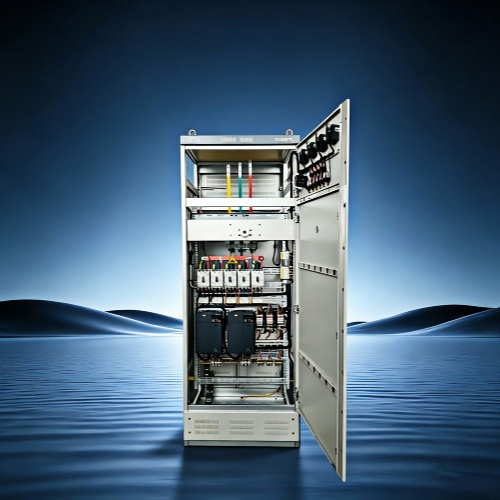

At the core of the GGD electrical cabinet is a carefully curated component ecosystem: we partner with leading brands such as Siemens, Schneider Electric, and ABB for variable frequency drives (VFDs), circuit breakers, and contactors, ensuring reliable power control and protection. High-quality copper busbars, terminal blocks, and relays from certified suppliers guarantee stable current distribution and long-term compatibility. For reactive power compensation, the GGD cabinet integrates advanced capacitor banks and power factor controllers, optimizing energy efficiency. Each GGD cabinet undergoes rigorous factory testing, including load testing and insulation resistance checks, to ensure reliable performance before delivery.

Core Function Details

The GGD distribution cabinet integrates multiple essential functions:

• Power Distribution & Protection: Efficiently distributes low-voltage power while providing overcurrent, short-circuit, and leakage protection, safeguarding critical industrial equipment.
• Reactive Power Compensation: Dedicated capacitor compensation modules automatically adjust power factor, reducing energy loss and lowering electricity costs.
• Modular Compartment Design: Independent compartments for incoming, outgoing, control, and compensation functions allow safe maintenance without disrupting the entire system.
• Intelligent Monitoring & Metering: Built-in energy meters and optional HMI modules enable real-time power quality analysis, energy consumption tracking, and remote monitoring.
• Safety Interlocks: Mechanical and electrical interlocks prevent misoperation, ensuring operator safety during GGD cabinet installation and maintenance.

Differentiation Advantages

What sets the GGD electrical cabinet apart from competitors:

• Customizable Modularity: Flexible combination of functions (incoming, outgoing, compensation) to meet diverse project requirements.
• Energy Efficiency Optimization: Built-in capacitor compensation reduces power loss and cuts operational costs by up to 20%.
• Easy Maintenance: Clear compartmentalization and standardized wiring layouts reduce troubleshooting time by 50%.
• Robust Durability: High-grade materials and anti-corrosion treatment ensure a service life of over 20 years in harsh environments.
• Global Compliance: Fully compliant with IEC 60439 and GB 7251 standards, with CE certification for global market access.

III. Technical Parameter Table

IV. Applicable Scenarios

The GGD cabinet is widely used across key industries:

• Industrial Manufacturing: Provides reliable power distribution and compensation for factories, assembly lines, and production equipment.
• Commercial Buildings: Delivers stable power to shopping malls, office buildings, and hotels, optimizing energy efficiency.
• Infrastructure Projects: Supports power supply and compensation for water treatment plants, pumping stations, and transportation hubs.
• Renewable Energy: Integrates with solar and wind power systems for low-voltage power distribution and grid stability.
• Data Centers & Telecom Facilities: Ensures uninterrupted power supply and power quality for critical IT and communication equipment.

V. Customization Services

We offer tailored customization for the GGD distribution cabinet:

• Configuration Customization: Adjust component types, circuit layouts, and compensation capacity to match specific power needs.
• Dimension & Layout: Modify cabinet size and internal compartment design to fit limited installation spaces.
• Interface & Communication: Customize communication protocols (Modbus, Profibus, IEC 61850) to integrate with SCADA and smart factory systems.
• OEM/ODM Services: Provide private labeling, custom branding, and packaging for global distributors and partners.

VI. Strength Endorsement

Backed by 15+ years of expertise in electrical control cabinet manufacturing, our GGD electrical cabinet has been deployed in over 800 projects worldwide
