Indoor Double-Door Soft Starter Control Cabinet | IP40-Rated Soft Starter Electrical Control Cabinet

Product Details Introduction

I. Industry Pain Points & Solutions

In modern industrial production, enterprises face persistent challenges with motor control: direct-on-line starting causes large inrush currents, damaging motors and mechanical equipment, and shortening service life; voltage fluctuations during startup disrupt other equipment on the same power grid, leading to production instability; traditional control systems lack smooth acceleration and deceleration functions, increasing wear and tear on transmission components; complex wiring between separate control devices extends installation time and safety risks; incompatible components cause system instability and unplanned downtime; and non-modular layouts hinder maintenance and system expansion.

Our indoor double-door soft starter control cabinet directly addresses these pain points. As an integrated solution, the soft starter control cabinet combines high-performance soft starters with a robust power distribution system, enabling smooth motor startup and shutdown to reduce inrush currents by up to 70%. The PLC soft starter cabinet protects motors and mechanical equipment, extends service life, and stabilizes grid voltage. The pre-wired modular layout of the integrated soft starter cabinet simplifies installation and maintenance, while the built-in digital meters and physical operation interface enable intuitive monitoring and control, significantly enhancing operational efficiency.

II. Product Details & Core Advantages

Cabinet Material & Craftsmanship

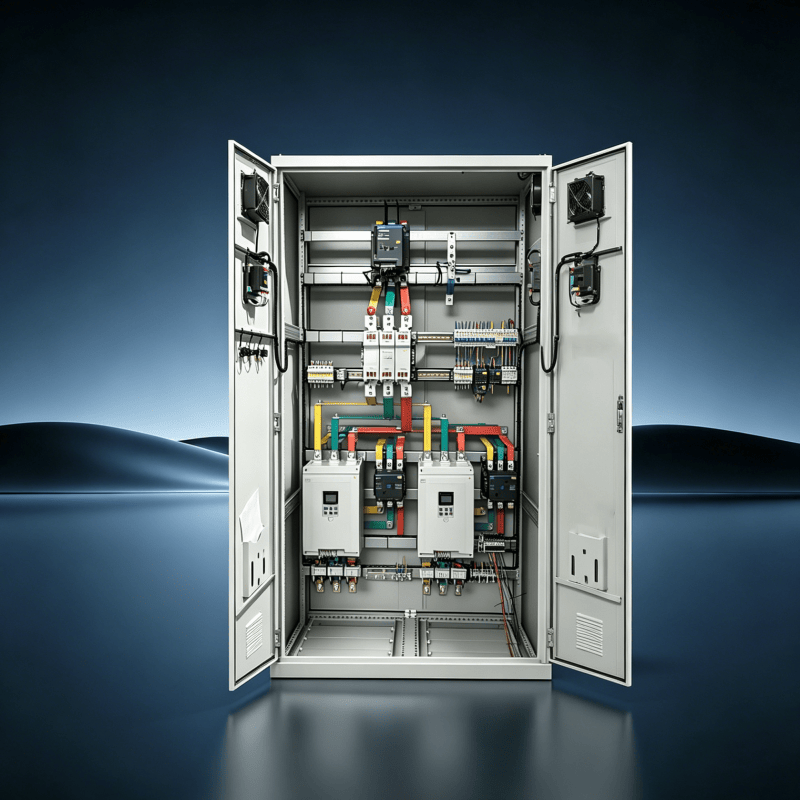

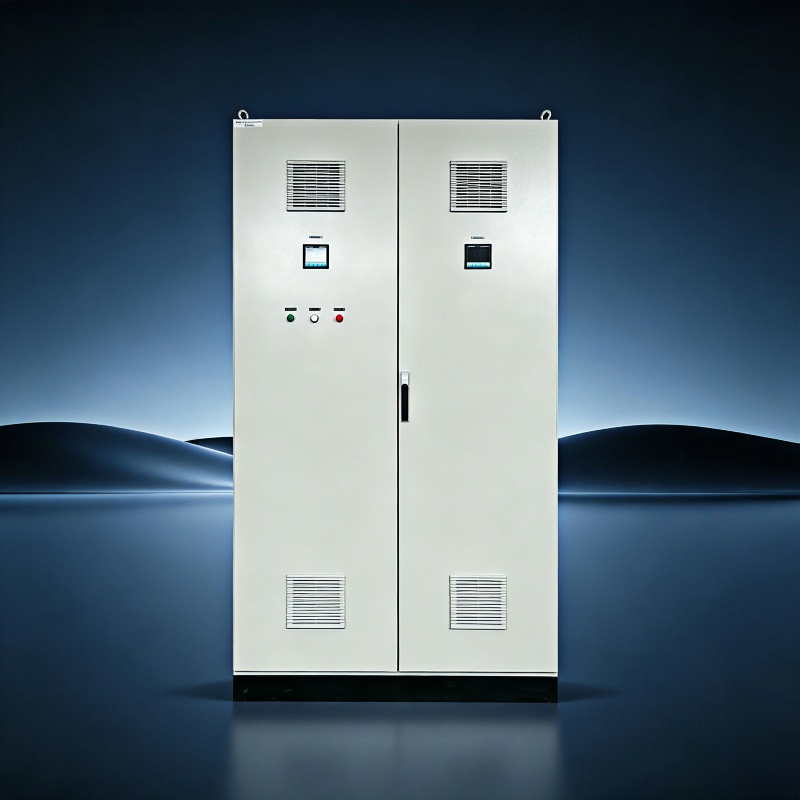

The indoor double-door soft starter control cabinet is fabricated from high-strength cold-rolled steel plates, processed through precision laser cutting, robotic welding, and electrostatic powder coating. This process delivers exceptional mechanical strength, corrosion resistance, and anti-aging performance, with an IP40 ingress protection rating that shields internal components from dust and accidental contact. The double-door soft starter control cabinet features a dual-door design: the front panel integrates digital meters, operation buttons, indicator lights, and selector switches for intuitive control and monitoring, while the secondary door provides full access to internal soft starters, circuit breakers, and wiring for easy maintenance and troubleshooting. Ventilation grilles on the cabinet body optimize heat dissipation, ensuring stable performance during continuous full-load operation. The sleek, industrial appearance of the indoor soft starter cabinet aligns with modern automation workshop aesthetics.

Core Configuration (Soft Starter Brand & Components)

At the core of the indoor double-door soft starter control cabinet is a premium component ecosystem: we integrate high-performance soft starters from leading brands (such as CHINT), supporting smooth motor startup and shutdown with adjustable acceleration and deceleration times. We partner with reputable brands for low-voltage components such as circuit breakers, contactors, relays, and terminal blocks, providing robust power protection and control. The front panel is equipped with digital meters, physical buttons, indicator lights, and selector switches, enabling intuitive operation and real-time status monitoring in industrial environments. The soft starter controlcabinet supports a three-phase five-wire power input (AC380V, 50Hz), meeting global industrial power supply standards. Each indoor soft starter cabinet is pre-wired, tested, and debugged in-house, reducing on-site installation time by 50%.

Core Function Details

The indoor double-door soft starter control cabinet integrates multiple essential functions:

• Smooth Motor Startup: High-performance soft starters reduce inrush currents by up to 70%, protecting motors, gearboxes, and transmission systems from mechanical shock.
• Adjustable Acceleration/Deceleration: Customizable startup and shutdown times to match different motor load requirements, minimizing wear and tear.
• Power Distribution & Protection: High-quality low-voltage components provide overcurrent, short-circuit, and leakage protection, ensuring safe and stable power supply.
• Dual-Door Accessibility: The double-door design provides full access to internal wiring and components, simplifying maintenance and reducing downtime.
• Standardized Power Input: Supports three-phase five-wire power input (AC380V, 50Hz), compatible with global industrial power supply systems.
• Heat Dissipation Optimization: Ventilation grilles and optimized internal layout ensure efficient heat dissipation, preventing component overheating during continuous operation.

Differentiation Advantages

What sets the indoor double-door soft starter control cabinet apart from competitors:

• Smooth Motor Control: Soft starter technology reduces inrush currents by up to 70%, extending motor and equipment service life by 30%.
• Integrated Design: Combines soft starters and power distribution in one cabinet, reducing wiring complexity and improving system stability.
• Premium Component Compatibility: Integration of leading-brand soft starters and high-quality low-voltage components ensures high reliability and long service life.
• Intuitive Physical Operation: Digital meters and physical buttons enable reliable operation in industrial environments, avoiding touch screen failure risks.
• Pre-Configured & Tested: Factory pre-wiring and testing minimize on-site installation time and errors, accelerating project delivery.
• IP40 Protection Rating: Shields internal components from dust and accidental contact, ensuring stable operation in industrial workshop environments.

III. Technical Parameter Table

IV. Applicable Scenarios

The indoor double-door soft starter control cabinet is widely used across key industries:

• Industrial Manufacturing: Provides smooth startup control for pumps, fans, conveyors, and crushers in automotive, mining, and cement industries.
• Water Treatment & Environmental Protection: Controls pump systems and fan speed in water treatment plants and pumping stations, reducing mechanical shock and energy consumption.
• Building Automation: Manages HVAC systems and fan startup in commercial buildings and smart factories.
• Material Handling & Logistics: Controls conveyor systems and sorting lines, minimizing wear on transmission components.
• Mining & Construction: Provides reliable startup control for heavy-duty motors in mining and construction equipment.

V. Customization Services

We offer tailored customization for the soft starter control cabinet:

• Configuration Customization: Adjust soft starter power ratings, component brands, and monitoring functions to match specific motor load requirements.
• Dimension & Layout: Modify cabinet size and internal layout to fit limited installation spaces or special environmental requirements.
• Interface & Communication: Add communication modules (Modbus, RS485) to integrate with remote monitoring and SCADA systems.
• OEM/ODM Services: Provide private labeling, custom branding, and packaging for global distributors and partners.

VI. Strength Endorsement

Backed by 15+ years of expertise in electrical control cabinet manufacturing, our indoor double-door soft starter control cabinet has been deployed in over 600 industrial projects worldwide
