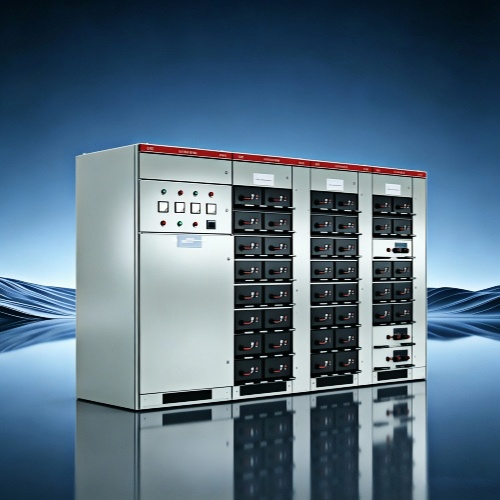

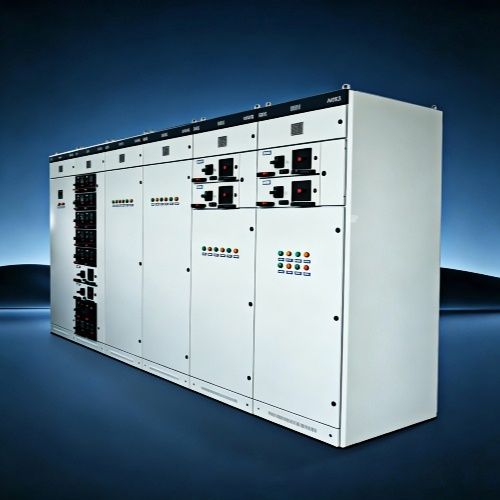

MNS Type AC Low-Voltage Draw-out Switchgear | Intelligent Industrial Electrical Control & Power Distribution Cabinet

Product Details Introduction

I. Industry Pain Points & Solutions

Modern industrial power distribution systems face persistent challenges: rigid fixed cabinet structures limit flexible expansion and adaptation to changing production needs; non-draw-out components require full system shutdown for maintenance, causing costly production downtime and revenue loss; poor compartmentalization leads to cross-circuit interference and safety hazards; bulky designs waste valuable floor space in compact industrial facilities; and limited intelligent monitoring capabilities hinder efficient operation and fault diagnosis.

Our MNS cabinet provides targeted solutions to these pain points. The modular, draw-out structure of the MNS switchgear allows quick replacement of functional units without powering down the entire system, minimizing operational downtime by up to 80%. Independent functional compartments isolate circuits, eliminating safety risks and improving system reliability. The compact, space-saving design of the MNS distribution cabinet reduces footprint by up to 30% compared to conventional fixed cabinets, optimizing valuable industrial floor space. Built-in intelligent monitoring modules enable real-time data collection and remote operation, supporting smart factory and industrial automation.

II. Product Details & Core Advantages

Cabinet Material & Craftsmanship

The MNS cabinet is fabricated from high-strength cold-rolled galvanized steel plates, processed through precision laser cutting, robotic welding, and electrostatic powder coating. This process delivers exceptional mechanical strength, impact resistance, and corrosion protection, with an IP40 ingress protection rating that shields internal components from dust and accidental contact. The modular frame structure of the MNS switchgear enables quick assembly, disassembly, and expansion, while its sleek, professional appearance aligns with modern industrial power room aesthetics. Ventilation grilles at the top and bottom of the MNS distribution cabinet enhance heat dissipation, ensuring stable performance during continuous full-load operation.

Core Configuration (Inverter Brand & Components)

At the core of the MNS electrical cabinet is a premium component ecosystem: we partner with leading global brands such as Schneider Electric, Siemens, and ABB for variable frequency drives (VFDs), circuit breakers, contactors, and relays, ensuring reliable power control and protection. High-quality copper busbars, terminal blocks, and surge protectors from certified suppliers guarantee stable current distribution and long-term compatibility. The draw-out functional units of the MNS cabinet (including circuit breaker drawers, motor control drawers, and capacitor compensation drawers) are pre-wired and tested in-house, allowing for hot-swappable replacement and reducing on-site installation and maintenance time.

Core Function Details

The MNS switchgear integrates multiple essential functions:

• Power Distribution & Protection: Efficiently distributes low-voltage power while providing overcurrent, short-circuit, leakage, and overload protection, safeguarding critical industrial equipment.
• Draw-out Unit Design: Functional drawers can be quickly withdrawn and replaced without system shutdown, minimizing maintenance downtime and production losses.
• Modular Compartmentalization: Independent busbar, functional unit, and cable compartments isolate circuits, preventing cross-interference and limiting fault spread, enhancing overall system safety.
• Intelligent Monitoring & Control: Optional HMI, energy metering, and remote communication modules enable real-time data collection, power quality analysis, and remote operation, supporting smart factory and industrial automation.
• Safety Interlocks: Mechanical and electrical interlocks prevent misoperation, ensuring operator safety during MNS cabinet installation, maintenance, and operation.

Differentiation Advantages

What sets the MNS distribution cabinet apart from competitors:

• Hot-Swappable Maintenance: Draw-out functional units allow component replacement without power outage, reducing downtime by up to 80% and minimizing production losses.
• High Modularity: Flexible combination of functional drawers (power, control, compensation) to meet diverse project requirements and adapt to changing power needs.
• Space Efficiency: Compact design reduces footprint by 30%, optimizing valuable industrial floor space and reducing construction costs.
• Enhanced Safety: Independent compartmentalization and multi-layer interlock mechanisms minimize safety risks from electrical faults and misoperation.
• Intelligent Operation: Built-in monitoring and communication modules support remote operation and fault diagnosis, improving operational efficiency.
• Global Compliance: Fully compliant with IEC 60439 and GB 7251 standards, with CE certification for global market access.

III. Technical Parameter Table

IV.Applicable Scenarios

The MNS cabinet is widely used across key industries:

• Industrial Manufacturing: Provides reliable power distribution and control for factories, assembly lines, and production equipment in automotive, steel, and textile industries.
• Data Centers & Telecom Facilities: Ensures uninterrupted power supply and hot-swappable maintenance for critical IT infrastructure.
• Commercial Buildings: Delivers stable power to shopping malls, office buildings, and hotels with flexible expansion capabilities.
• Infrastructure Projects: Supports power supply for water treatment plants, pumping stations, and transportation hubs.
• Renewable Energy: Integrates with solar and wind power systems for low-voltage power distribution and grid stability.

V. Customization Services

We offer tailored customization for the MNS switchgear:

• Configuration Customization: Adjust functional drawer types, circuit layouts, and protection settings to match specific power needs.
• Dimension & Layout: Modify cabinet size and internal compartment design to fit limited installation spaces.
• Interface & Communication: Customize communication protocols (Modbus, Profibus, IEC 61850) to integrate with SCADA and smart factory systems.
• OEM/ODM Services: Provide private labeling, custom branding, and packaging for global distributors and partners.

VI. Strength Endorsement

Backed by 15+ years of expertise in electrical control cabinet manufacturing, our MNS distribution cabinet has been deployed in over 700 projects worldwide
