Explosion-Proof Control Cabinet | Ex d IIC T4/IP65 Rated Electrical Control Cabinet for Hazardous Areas

Product Details Introduction

I. Industry Pain Points & Solutions

In hazardous industrial environments (such as petrochemical, coal mining, pharmaceutical, and paint spraying facilities), enterprises face severe safety and operational challenges: standard electrical cabinets cannot prevent internal sparks from igniting flammable gases or dust, leading to explosion risks; poor sealing allows corrosive substances and moisture to damage components, causing frequent failures; non-certified equipment violates safety regulations, resulting in production shutdowns and legal penalties; complex wiring increases maintenance difficulty and safety hazards; and limited monitoring capabilities hinder real-time fault diagnosis.

Our explosion-proof control cabinet directly addresses these pain points. Designed in strict compliance with international explosion-proof standards, the Ex control cabinet adopts a flameproof enclosure structure that contains internal explosions and prevents ignition of surrounding hazardous mixtures. With an IP65 ingress protection rating, the hazardous area control cabinet effectively blocks dust, moisture, and corrosive substances, ensuring stable operation in harsh environments. The pre-wired modular design of the explosion-proof electrical cabinet simplifies installation and maintenance, while the intuitive front panel with switches, buttons, and indicators enables safe operation and monitoring, fully meeting safety and efficiency requirements in explosive atmospheres.

II. Product Details & Core Advantages

Cabinet Material & Craftsmanship

The explosion-proof control cabinet is fabricated from high-strength carbon steel or stainless steel plates, processed through precision cutting, robotic welding, and electrostatic powder coating or pickling passivation treatment. This process delivers exceptional mechanical strength, corrosion resistance, and anti-aging performance, with a robust flameproof structure that can withstand internal explosion pressures. The Ex control cabinet features a heavy-duty bolted enclosure design: the flameproof joint gap is precisely controlled to extinguish explosion flames, while the IP65-rated sealing structure prevents dust and water intrusion. The cabinet is equipped with lifting lugs and a sturdy base for easy installation, and the sleek industrial appearance aligns with safety standards for hazardous areas.

Core Configuration (Component Brands & Explosion-Proof Components)

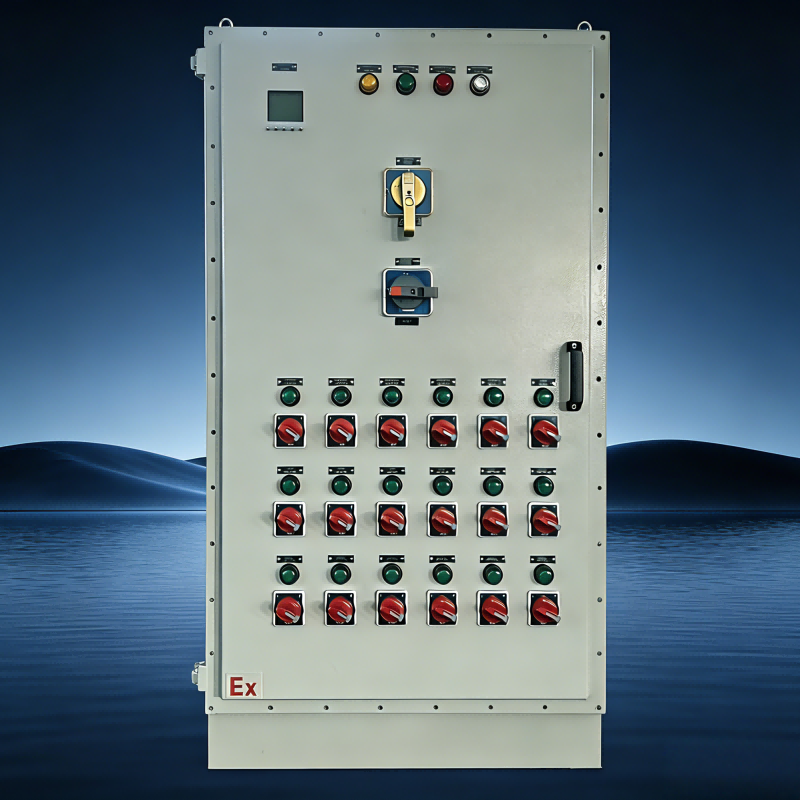

At the core of the explosion-proof control cabinet is a certified component ecosystem: we integrate explosion-proof PLC modules, circuit breakers, contactors, and switches from reputable brands, all certified to Ex d IIC T4 standards. The front panel is equipped with explosion-proof rotary switches, push buttons, indicator lights, and instrument displays, enabling safe operation and real-time status monitoring in explosive atmospheres. The cabinet supports a three-phase five-wire power input (AC380V, 50Hz), meeting global industrial power supply standards. Each explosion-proof electrical cabinet undergoes strict pressure testing and safety certification in-house, ensuring compliance with IECEx, ATEX, and CNEX standards, and reducing on-site installation time by 50%.

Core Function Details

The explosion-proof control cabinet integrates multiple essential safety and control functions:

• Flameproof Explosion Containment: The robust enclosure structure contains internal explosions, preventing flames from spreading to the surrounding hazardous environment.
• Intrinsically Safe Operation: Certified explosion-proof components eliminate spark risks, ensuring safe operation in flammable gas or dust atmospheres.
• IP65 Environmental Protection: Sealed structure blocks dust, moisture, and corrosive substances, extending component service life in harsh conditions.
• Centralized Control & Monitoring: Front panel switches, buttons, and indicators enable safe local operation and real-time status monitoring.
• Standardized Power Distribution: Certified circuit breakers and contactors provide overcurrent, short-circuit, and leakage protection, ensuring safe power supply.
• Modular Maintenance: Pre-wired modular design simplifies component replacement and maintenance, reducing downtime in hazardous areas.

Differentiation Advantages

What sets the explosion-proof control cabinet apart from competitors:

• Strict Explosion-Proof Certification: Compliant with IECEx, ATEX, and CNEX standards, ensuring safe operation in Zone 1/2 hazardous areas.
• IP65 High Protection Rating: Effectively resists dust, moisture, and corrosion, suitable for long-term use in harsh industrial environments.
• Certified Components: All internal electrical components are explosion-proof certified, eliminating hidden safety risks.
• Robust Flameproof Structure: Precision-engineered flameproof joints withstand internal explosion pressures, preventing flame propagation.
• Pre-Configured & Certified: Factory-assembled, wired, and certified, reducing on-site installation risks and accelerating project delivery.
• Customizable Design: Flexible layout and component configuration to meet specific process and safety requirements.

III. Technical Parameter Table

IV. Applicable Scenarios

The explosion-proof control cabinet is widely used across high-risk industries:

• Petrochemical & Oil & Gas: Controls pumps, valves, and compressors in refineries, oil platforms, and gas storage facilities.
• Coal Mining: Monitors and controls ventilation, conveying, and drainage systems in underground mines.
• Pharmaceutical & Chemical: Ensures safe operation of reaction kettles, drying equipment, and mixing systems in explosive dust environments.
• Paint & Coating: Controls spraying and drying lines in paint shops with flammable solvent vapors.
• Aerospace & Military: Manages fuel storage and handling systems in hazardous material facilities.

V. Customization Services

We offer tailored customization for the explosion-proof control cabinet:

• Configuration Customization: Select certified PLC, VFD, or soft starter components to match specific control requirements.
• Dimension & Layout: Modify cabinet size and internal layout to fit limited installation spaces in hazardous areas.
• Certification Support: Provide customized certification for IECEx, ATEX, or regional safety standards.
• OEM/ODM Services: Offer private labeling, custom branding, and packaging for global distributors and system integrators.

VI. Strength Endorsement & Case Studies

Backed by 15+ years of expertise in explosion-proof electrical control manufacturing, our explosion-proof control cabinet has been deployed in over 400 hazardous area projects worldwide
