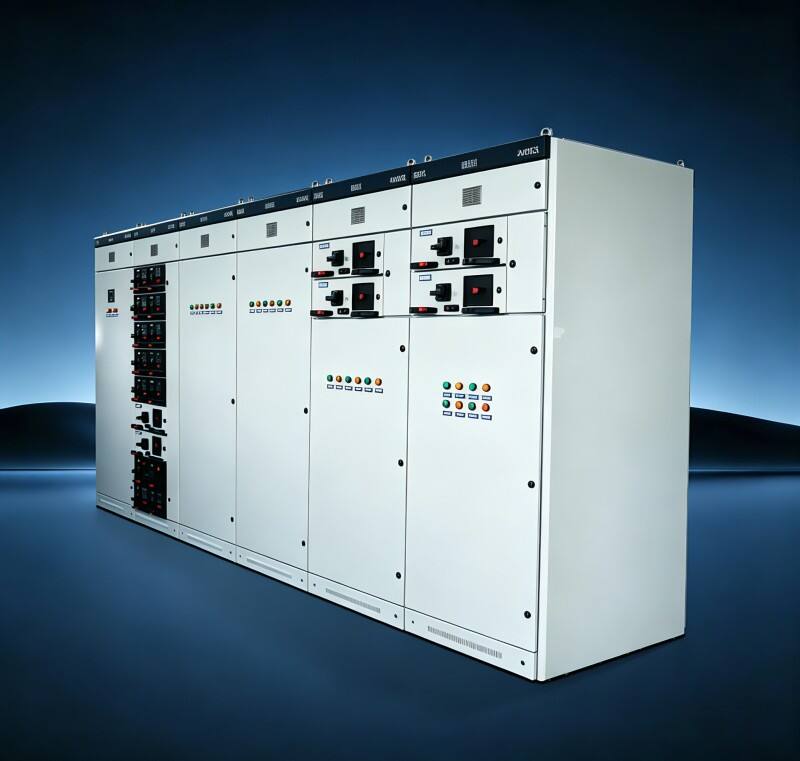

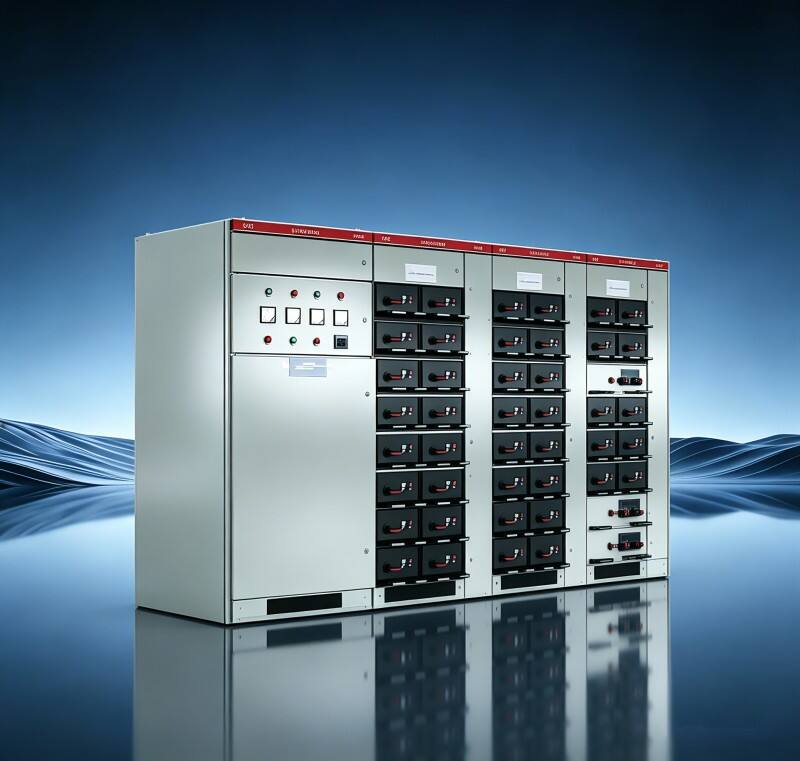

Modular Empowerment, Safety and Efficiency——Shanghai Zhonghan Electric Low-Voltage Drawer Switch Cabinet, Leading the New Upgrade of the Power Distribution Industry

Amid the accelerating intelligent transformation of industrial power distribution and the continuous development of smart grids, modern enterprises are placing higher demands on the safety, flexibility, and efficiency of electrical systems. As a key component of low-voltage power distribution systems, the low-voltage drawer switch cabinet has become essential equipment for ensuring stable power transmission and reliable system operation. With advantages such as modular design, convenient maintenance, and high safety performance, it plays a critical role in improving the overall efficiency of power distribution networks.

Shanghai Zhonghan Electric Co., Ltd. has long been deeply engaged in the field of complete electrical equipment manufacturing. With strong technical capabilities and rich industry experience, the company develops and produces low-voltage drawer switch cabinets covering three major series—GCK, GCS, and MNS—strictly in accordance with national and international standards. These products are widely used in industrial manufacturing, commercial buildings, municipal engineering, and new energy sectors, providing efficient, safe, and customizable power distribution solutions that support the continuous upgrading of modern electrical systems.

Exquisite Craftsmanship: Strict Full-Process Control to Lay a Solid Foundation for Quality

Adhering to the philosophy of “quality first,” Zhonghan Electric implements standardized, refined, and intelligent management throughout the entire production process. From raw material procurement to final product delivery, every stage is subject to strict inspection and quality control to ensure high reliability and long service life.

The cabinet body is manufactured using high-quality cold-rolled steel plates or aluminum-zinc coated sheets, offering excellent strength and corrosion resistance. Advanced processing technologies such as laser cutting, CNC bending, and precision forming are adopted to ensure high dimensional accuracy and structural stability. The surface undergoes phosphating, derusting, and electrostatic powder coating treatment, achieving a protection level ranging from IP30 to IP54, making it suitable for various complex industrial environments including high humidity, dust, and temperature fluctuations.

Core electrical components are carefully selected from well-known domestic and international brands, including circuit breakers, contactors, protection devices, and intelligent meters. The cabinet design adopts a clear separation of strong and weak currents, along with functional zoning, effectively reducing electrical interference and improving operational safety. The busbar system features excellent conductivity and thermal performance, while standardized wiring and clear labeling ensure easy installation, operation, and maintenance.

The drawer units adopt a modular design with standardized dimensions, complete specifications, and strong interchangeability. Each drawer is equipped with reliable mechanical and electrical interlock systems, effectively preventing misoperation and eliminating the risk of live operation. This design significantly enhances personnel safety and ensures stable system performance.

Before delivery, every switch cabinet undergoes comprehensive testing procedures, including insulation resistance testing, dielectric voltage withstand testing, functional verification, and load simulation debugging. Continuous operation tests under simulated real working conditions are also carried out to ensure that all performance indicators fully comply with national and industry standards. This rigorous testing process guarantees product safety, stability, and long-term reliability.

Core Advantages: Modular Design to Unlock a New Experience in Operation and Maintenance

Compared with traditional fixed-type switch cabinets, Zhonghan Electric’s low-voltage drawer switch cabinets offer significant advantages in modularization, flexibility, and safety. These features are specifically designed to meet the evolving needs of modern power distribution systems and to improve operation and maintenance efficiency.

The three major series—GCK, GCS, and MNS—each have unique characteristics and can be flexibly configured according to different current capacities, load requirements, and application scenarios. This flexibility allows customers to select the most suitable solution based on their specific needs.

One of the key advantages of the modular design is its scalability. When power demand increases, there is no need to reconstruct the entire cabinet system. Capacity expansion can be easily achieved by adding or replacing drawer units, significantly reducing upgrade costs and project downtime.

In addition, the cabinet supports live maintenance functionality. Faulty drawer units can be quickly withdrawn and replaced without shutting down the entire system, greatly reducing downtime losses. This feature is particularly valuable in industries that require continuous operation, such as chemical processing, manufacturing, and automotive production.

Furthermore, the system can integrate advanced intelligent functions such as PLC control, remote monitoring, fault diagnosis, and energy management. These capabilities enable digital and visual management of power distribution systems, helping enterprises optimize energy consumption, improve operational efficiency, and enhance safety management.

Diversified Applications: Full Coverage to Empower the Upgrade of Various Industries

With stable performance, high reliability, and comprehensive protection features, Zhonghan Electric’s low-voltage drawer switch cabinets are widely applied across multiple industries, serving as a “safety guardian” for power distribution systems.

In the industrial sector, they provide stable and efficient power distribution for production lines, ensuring continuous operation of machinery and equipment. In commercial buildings such as office complexes, shopping malls, and hotels, they are responsible for power distribution and intelligent management of lighting, HVAC systems, elevators, and fire protection systems.

In municipal infrastructure projects, including water treatment plants, pumping stations, rail transit systems, and urban lighting networks, the cabinets demonstrate excellent adaptability to complex working conditions, ensuring reliable power supply for critical public services.

In the new energy sector, they are widely used in photovoltaic power stations and energy storage systems, supporting grid connection, load management, and system protection. In the medical field, the cabinets play a crucial role in ensuring uninterrupted power supply for critical equipment, safeguarding patient safety and healthcare operations.

Customized Empowerment: Tailored Solutions and One-Stop Delivery

Zhonghan Electric moves beyond the traditional “one-size-fits-all” approach by offering comprehensive customized solutions tailored to each customer’s specific requirements. A professional technical team provides full-process support, from initial scheme design and system planning to manufacturing, testing, and on-site installation guidance.

The company can deliver personalized configurations, including cabinet protection levels, drawer unit combinations, electrical component selection, and intelligent control functions. By adhering to the principle of “one solution for one project,” Zhonghan Electric ensures that each system perfectly matches the customer’s operational needs.

This customized service model not only saves time and costs for customers but also accelerates project implementation and enhances overall system performance. With a one-stop delivery approach, customers benefit from seamless integration, efficient execution, and reliable long-term operation.

Looking to the future, Shanghai Zhonghan Electric will continue to deepen its expertise in the low-voltage power distribution field. The company remains committed to optimizing product design, improving manufacturing processes, and enhancing customization capabilities.

With high-quality, intelligent, and reliable low-voltage drawer switch cabinets, Zhonghan Electric will continue to build a strong line of defense for power distribution safety. By empowering industries with advanced electrical solutions, the company is actively promoting the transformation of power systems toward greater efficiency, intelligence, and green, sustainable development.
