Indoor Double-Door PLC Control Cabinet | Single HMI Touch Screen on Front Panel for Factory Automation

Product Details Introduction

I. Industry Pain Points & Solutions

In modern industrial workshops and control rooms, traditional control systems face persistent challenges: single-door cabinets restrict access to internal components, extending maintenance time and operational risks; incompatible components cause system instability and unplanned downtime; inadequate dust protection leads to premature component failure; complex on-site wiring increases installation time and safety hazards; non-modular layouts hinder maintenance and expansion; and limited monitoring capabilities reduce operational efficiency and fault diagnosis speed.

Our indoor double-door PLC control cabinet directly addresses these pain points. The dual-door design of the PLC control cabinet provides full access to internal components, simplifying maintenance and reducing downtime. With an IP40 ingress protection rating, the indoor PLC cabinet shields internal components from dust and accidental contact, ensuring stable operation in industrial workshops. The pre-wired modular layout of the automation PLCcabinet minimizes installation time and errors, while the single HMI touch screen integrated on the front panel enables intuitive operation and real-time monitoring, significantly enhancing operational efficiency.

II. Product Details & Core Advantages

Cabinet Material & Craftsmanship

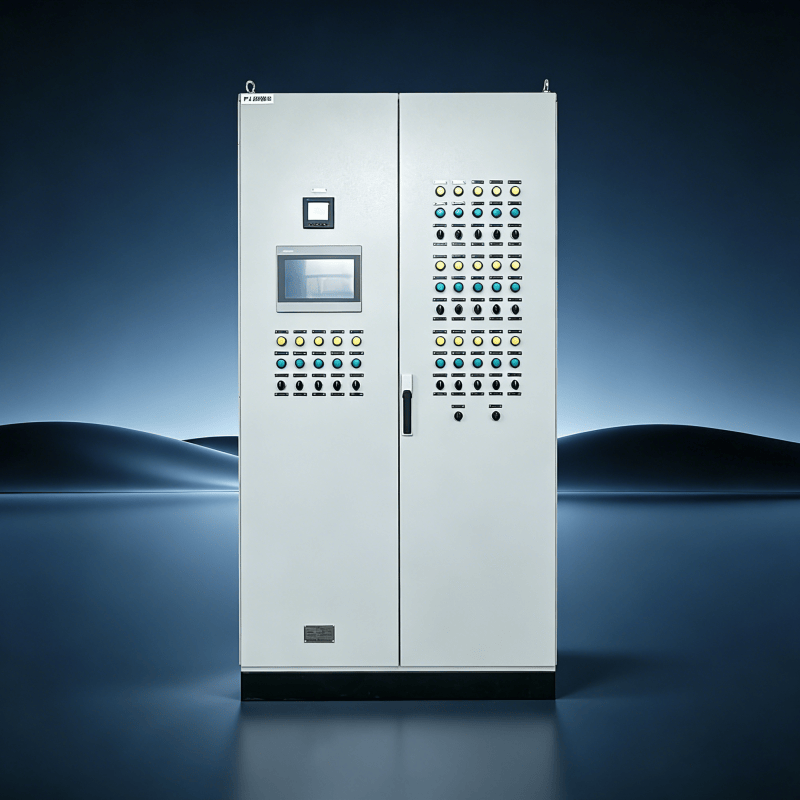

The indoor double-door PLC control cabinet is fabricated from high-strength cold-rolled steel plates, processed through precision laser cutting, robotic welding, and electrostatic powder coating. This process delivers exceptional mechanical strength, corrosion resistance, and anti-aging performance, with an IP40 ingress protection rating that shields internal components from dust and accidental contact. The double-door PLC control cabinet features a dual-door design: the front panel integrates the HMI touch screen, operation buttons, and indicator lights for intuitive control and monitoring, while the secondary door provides full access to internal wiring and components for easy maintenance and troubleshooting. Ventilation grilles on the cabinet body optimize heat dissipation, ensuring stable performance during continuous full-load operation. The sleek, industrial appearance of the indoor PLC cabinet aligns with modern automation workshop aesthetics.

Core Configuration (Inverter Brand & Components)

At the core of the indoor double-door PLC control cabinet is a premium component ecosystem: we use Siemens series PLC modules (including S7-1200/S7-1500 series) for reliable logic control and data processing, ensuring high performance and compatibility. We partner with Schneider Electric for low-voltage components such as circuit breakers, contactors, and relays, providing robust power protection and control. The front panel is equipped with one industrial HMI touch screen, physical buttons, indicator lights, and selector switches, enabling intuitive operation and real-time status monitoring in industrial environments. The PLC control cabinet supports a three-phase five-wire power input (AC380V, 50Hz), meeting global industrial power supply standards. Each indoor PLC cabinet is pre-wired, tested, and debugged in-house, reducing on-site installation time by 50%.

Core Function Details

The indoor double-door PLC control cabinet integrates multiple essential functions:

• Logic Control & Automation: Siemens PLC modules enable precise logic control, data acquisition, and process automation for industrial production lines.
• Intuitive HMI Interaction: The single HMI touch screen on the front panel provides real-time monitoring, parameter setting, and fault alarm functions, simplifying operation and maintenance.
• Power Distribution & Protection: Schneider low-voltage components provide overcurrent, short-circuit, and leakage protection, ensuring safe and stable power supply.
• Dual-Door Accessibility: The double-door design provides full access to internal wiring and components, simplifying maintenance and reducing downtime.
• Standardized Power Input: Supports three-phase five-wire power input (AC380V, 50Hz), compatible with global industrial power supply systems.
• Heat Dissipation Optimization: Ventilation grilles and optimized internal layout ensure efficient heat dissipation, preventing component overheating during continuous operation.

Differentiation Advantages

What sets the indoor double-door PLC control cabinet apart from competitors:

• Dual-Door Accessibility: Full access to internal components simplifies maintenance, reducing downtime by up to 40%.
• Front Panel HMI Integration: One built-in touch screen on the front panel enables intuitive operation and real-time monitoring, enhancing operational efficiency.
• Premium Component Compatibility: Integration of Siemens PLC modules and Schneider components ensures high reliability and long service life.
• IP40 Protection Rating: Shields internal components from dust and accidental contact, ensuring stable operation in industrial workshop environments.
• Pre-Configured & Tested: Factory pre-wiring and testing minimize on-site installation time and errors, accelerating project delivery.
• Global Power Compatibility: Supports three-phase five-wire power input (AC380V, 50Hz), meeting global industrial power supply standards.

III. Technical Parameter Table

IV. Applicable Scenarios

The indoor double-door PLC control cabinet is widely used across key industries:

• Industrial Manufacturing: Provides automated control for production lines, assembly lines, and processing equipment in automotive, electronics, and food processing industries.
• Water Treatment & Environmental Protection: Controls pump systems, filtration processes, and water quality monitoring in water treatment plants.
• Building Automation: Manages HVAC, lighting, and security systems in commercial buildings and smart factories.
• Material Handling & Logistics: Controls conveyor systems, sorting lines, and warehouse automation equipment.
• Energy & Power: Supports monitoring and control of power distribution systems and renewable energy projects.

V. Customization Services

We offer tailored customization for the PLC control cabinet:

• Configuration Customization: Adjust PLC module types, HMI sizes, and component brands to match specific automation requirements.
• Dimension & Layout: Modify cabinet size and internal layout to fit limited installation spaces or special environmental requirements.
• Interface & Communication: Customize communication protocols (Modbus, Profibus, PROFINET) to integrate with SCADA and MES systems.
• OEM/ODM Services: Provide private labeling, custom branding, and packaging for global distributors and partners.

VI. Strength Endorsement & Case Studies

Backed by 15+ years of expertise in electrical control cabinet manufacturing, our indoor double-door PLC control cabinet has been deployed in over 700 indoor projects worldwide
